This article aims to provide you with a guide on how to enable Azure Provisioning for Happeo.

To learn how to set up the Microsoft integrations inside Happeo, please see this article.

In short

To enable Azure AD Provisioning of users and groups:

  • You will need an Azure AD enterprise application, which must be created in your Active Directory
  • You need to be an administrator of your organization in Happeo to get provisioning credentials

Create a Happeo enterprise application in Azure

  1. Go to your Azure Portal
  2. Select Azure Active Directory
  3. Under Azure Active Directory, navigate to Enterprise applications
  4. Then, under the All applications tab, click New application


You will be taken to Browse Azure AD Gallery. From there:

  1. Select Create your own application
  2.  Input the name of your app (for example “Happeo Sync”)
  3. Select Integrate any other application you don't find in the gallery
  4. Then click the Create button


Once the application is created, you will be taken to the Overview.


Obtaining the provisioning credentials from Happeo

  1. Log in with your account to beta.happeo.com
  2. Go to Admin Settings in the top right corner
  3. Select Integrations and click the Setup button for Azure Provisioning
    1. Note: A modal will pop up asking for your Azure AD tenant ID if we cannot find it
  4. A modal will pop up containing two fields: tenant URL and tenant secret. These will need to be copied to the Azure side into the enterprise application

Enable provisioning for the application

This section has been referenced from this link.

Admin credentials

In the Happeo enterprise application (that you have created), go to the tab Provisioning and click the Get started button


Then, you can:

  1. Set Provisioning Mode to Automatic
  2. Fill in the Tenant URL and Secret Token that you obtained previously from Happeo
  3. Click the Test Connection button to verify your Tenant URL and Secret Token
  4. You should receive a success notification. Then click the Save button to save the configuration


Troubleshooting

If the testing is not successful, please retrace your steps. If testing continues to not succeed, please contact our support team.

Mappings

Users

One attribute mapping must be changed for users to provision correctly.

  1. In the Edit provisioning tab, click Mappings and then click Provision Azure Active Directory Users
  2. On this page, you need to change the existing mapping for mailNickame (source) to externalId (target). To do that, click the row showing that mapping to edit it, and change the source attribute to objectId in the Edit attribute side panel. Verify that the target attribute is still externalId
  3. Click Ok and verify that the mapping now is from objectId (source) to externalId (target)
  4. Save the changes


If the original mapping does not exist for some reason, then you should create a new one, which maps the source attribute objectId to the target externalId.

Groups

Two attribute mappings must be created and added in case groups are used in Azure AD.

  1. In the Provisioning Mapping section, click Provision Azure Active Directory Groups
  2. Check the box Show advanced options and click Edit attribute list for customappsso


Then, create the following two attributes:

Name Type

urn:ietf:params:scim:schemas:extension:happeo:2.0:Group:emailEnabled

Boolean

urn:ietf:params:scim:schemas:extension:happeo:2.0:Group:email

String



You can then:

  1. Click the Save button. You will be taken back to the Attribute Mapping screen for Groups
  2. You will need to add two new mappings corresponding to these two newly created attributes:
    1. Click Add new mapping and set the source attribute to be mailEnabled
    2. And the target attribute to be the newly created attribute urn:ietf:params:scim:schemas:extension:happeo:2.0:Group:emailEnabled
  3. Click Ok
  4. Repeat this, setting the source attribute this time to be mail and the target attribute urn:ietf:params:scim:schemas:extension:happeo:2.0:Group:email
  5. After you have added these two mappings, don’t forget to save the changes. The screenshot below shows what you should end up with as mappings


Specify users and groups to provision

This is done by first allowing the enterprise application to sync all users and groups, then adding scoping filters.

Sync all users and groups

  1. In the Provisioning Settings section, choose Sync all users and groups for scope
  2. Click the Save button to save the changes


Scoping filters

This section has been referenced from this link.

  1. In the Provisioning Mappings section, click Provision Azure Active Directory Groups or Provision Azure Active Directory Users to manage scoping filters on groups or users
  2. You will be taken to the Attribute Mapping view. Click Source Object Scope

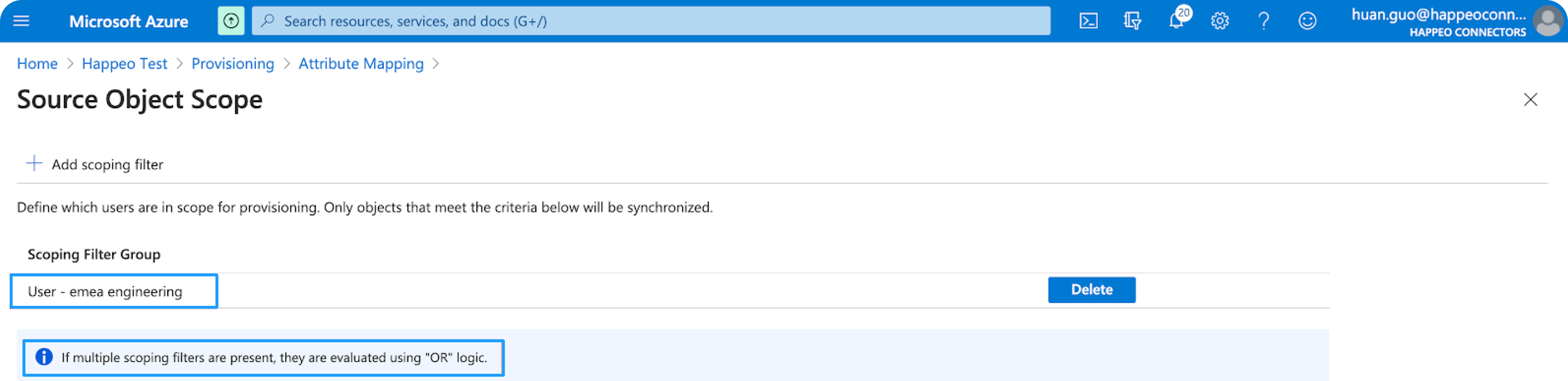

You will be taken to the Source Object Scope view:

  1. Click Add scoping filter
  2. Specify the Filtering Criteria
  3. Provide a Scoping Filter Title
  4. Click the Ok button to save the scoping filter


You will see the new scoping filter in Source Object Scope and you can continue adding more scoping filters.



Start provisioning

  1. Go back to the Provisioning menu. You should see the configured provisioning
  2. Tap on the Start provisioning button to start the automatic provisioning from Azure AD to Happeo



Setting up user and sync group

Once you've followed all the steps in this article, you should see two applications for Happeo in the Azure AD > Enterprise Applications list:

  1. One that you have created (named something like Happeo sync and the icon will be the first letter on a colored background)
  2. And one called Happeo, which has the Happeo logo as the icon

Considerations for user and group sync

There are two options for selecting users and groups to provision and sync:

  1. Assigning users and groups to the application
  2. Or syncing all users

How these work are described in the accordions below, including recommendations on when and how to use each case.

Key considerations for syncing groups, which apply to both options:

  • Permissions to create Pages and Channels are based on Groups
  • By default, the permission is set to True, so all members of all Groups have permission to create Pages and Channels
  • If a user belongs to even one group that has permission to create Pages and Channels, they will have that permission
  • Our recommendation is that not everyone should have permission to create Pages and Channels, so these would need to be unchecked. Currently, it is a manual process that needs to be done individually for each group, so we recommend not syncing (all) groups until it has been well defined which ones are necessary
  • Group's member count in Happeo will only show users that have been synced. So if a group in Azure AD has 50 members, but only 40 of them are considered users of Happeo, the member count in Happeo will show as 40

Group types in Microsoft

  • Security groups
    • Security groups are usually used more for assigning permissions or access
    • Security groups do not have an email address within Microsoft, but when a security group is synced to Happeo, an email address is generated within Happeo for it
  • Microsoft 365 groups
    • Each Azure Active Directory auto-creates a Microsoft 365 group that contains all users in the environment and is also visible to everyone in Teams. Out of these options (when creating a new Teams group), it's an org-wide group
      • Microsoft 365 groups have an email address


  • Teams groups
    • When creating a new team, it's possible to create it from an existing Microsoft 365 group or create an entirely new group
    • Creating a Team automatically creates a Microsoft 365 group, but you can create Microsoft 365 groups without creating a Team
    • There isn't a way to determine in Azure if a Microsoft 365 group has a Team linked to it, or whether it's private or open to join
    • For Teams that are public (anyone in your org can join), note that anyone who joins that group is able to gain access to content shared with that group (within Happeo)
